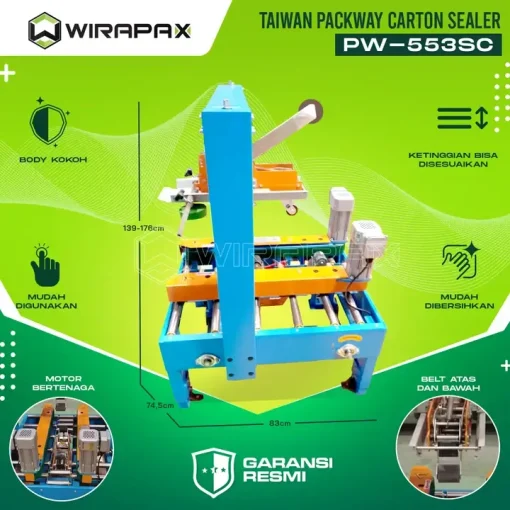

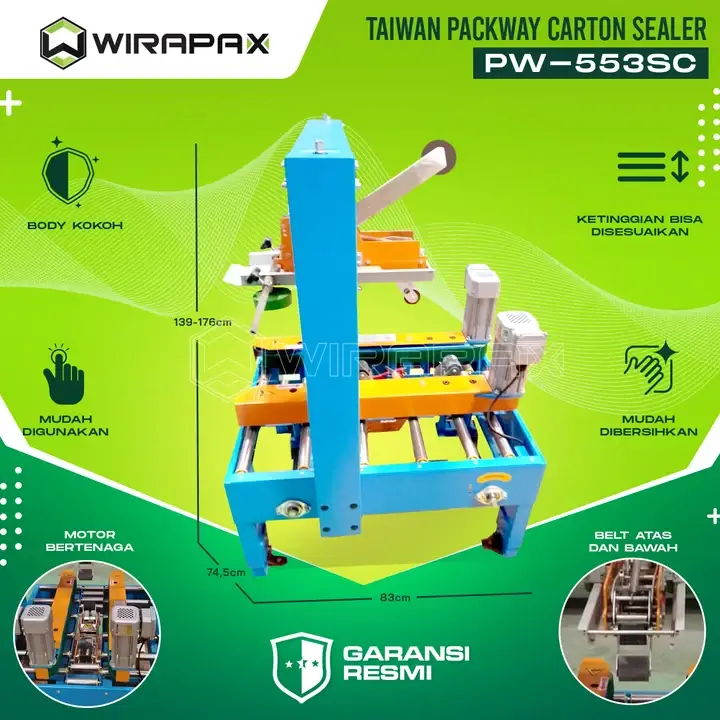

Taiwan Carton Sealer PW-553SC
Flap Folding Carton sealer and carton sealing machine for uniform cartons
- close and seal the flaps
- from Taiwan best manufacturer
- quality machine manufacturer
- Suitable for all general shaped boxes,
Power | 220V, 50/60Hz |
Tape Head | C-1 |
OPP | 2″ |
Min.Sealing Size (LxWxH) | 2′ OPP: >150 x 200 x 85 (mm) >5.9 x 7.9 x 3.4 (in) |
Max.Sealing Size (LxWxH) | 2′ OPP: ∞ x 500 x 500 (mm) ∞ x 19.7 x 19.7 (in) |
Tape Overlap | 2′ OPP: 60±5 (mm) 2.4±0.2 (in) |
Working Table Height | 570~810 (mm) 22.4~32 (in) |
Capacity | 30 boxes/min. *Depends on carton quality and size |
Max Loading Weight | 30 (kg) 66 (lb) |
Machine Size (LxWxH) | 830 x 745 x 1396~1761 (mm) 33 x 29.3 x 55~69.3 (in) |
Mechanical Aspect:
- Both side compression rollers
- Top mast with cushion
- Casters with brake
- Manual adjustment for different box sizes
- Roller Table
Mechatronic Aspect:
- 60 sec. auto-stop
- 3 phase, 220/380/415/440V
Mechanical Aspect:
- Extension Roller Table L470 x W360mm
- Tape overlap 70±5mm
- Tape overlap 95±5mm
- Customize sealing size
- Outside diameter of OPP Tape 340mm (13.5″)
