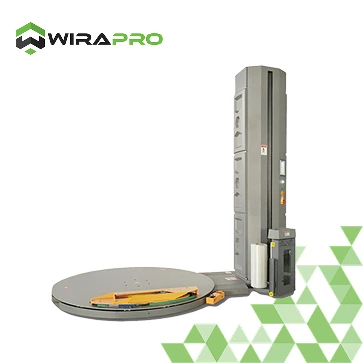

Full Auto Pallet Wrapper X100 WIRAPRO
Original price was: Rp125.000.000.Rp105.000.000Current price is: Rp105.000.000.
GARANSI HARGA TERMURAH
PartBrand
| Model | X100 |
|---|---|
| Power | 1500 watt |
| Column Height | 2650mm |
| Max Wrapping Height & Weight | 2400mm / 2000kg |
| Turntable Size | 1650mm |
| Maximum wrapping speed | 20-25 loads/hour |
| Turntable Speed | 0-12RPM(Adjustable) |
| Turntable Drive | 1 PH Wheel Drive |
| Standard Pre-Stretch | 300% pre-stretch |
| Standard Film Width | 500mm |
| Film Capacity | 250mm Diametery |
| Remote Control | Have |
| Film Cut and Clamp | Automatic |
| Integrated Scale | Optional |
| Machine Size | L:2800mm W:1650mm H:2745mm |
| Machine Weight | 680KG |
| SparePart | Brand |
| Photoeletric sensor | SICK(Germany) |
| PLC | SIEMENS(Germany) |
| Travel Switch | OMRON(Japan) |
| Relay | OMRON(Japan) |
| Touch screen | SIEMENS 7inch |
| Position switch | OMRON(Japan) |
Full Auto Pallet Wrapper X100 WIRAPRO
Mesin Pallet Wrapper merupakan mesin yang di gunakan untuk mengepak kemasan utama (dus,peti kayu,pallet) menggunakan plastik Stretch Wrapper Film melalui metode gulung/rolling. Keuntungan dari kemasan jenis ini adalah untuk menghindari dari debu, air, atau runtuh / robohnya barang saat sedang dibawa oleh forklift atau hand pallet truck. Plastik yang digunakan adalah Stretch Film / Plastik Wrap / Wrapping Film.
Product Application
1.Pallet stretch wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
2.Film provides extra support during transportation and storage to protect them from dust, moisture or damage
3.The pallet wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper,pottery, food & beverage, etc
Main Features
1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Auto reset of turntable
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7. PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8. Pallet stretch wraping machine soft start and soft stop.
9. Suitable for heavy pallet
10. Remote control sytem ,fully automatic cut and clamp film
