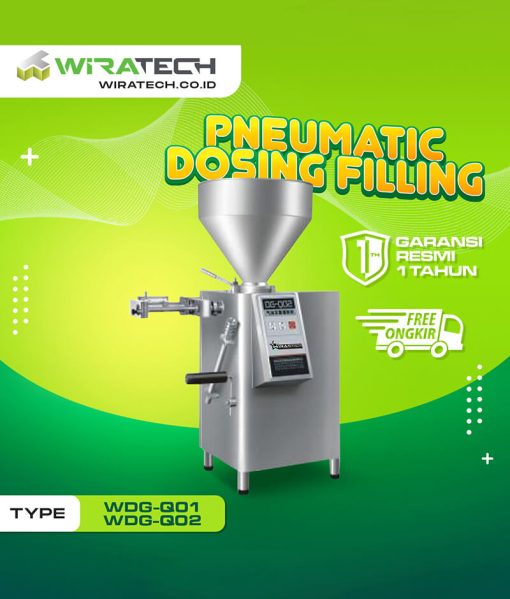

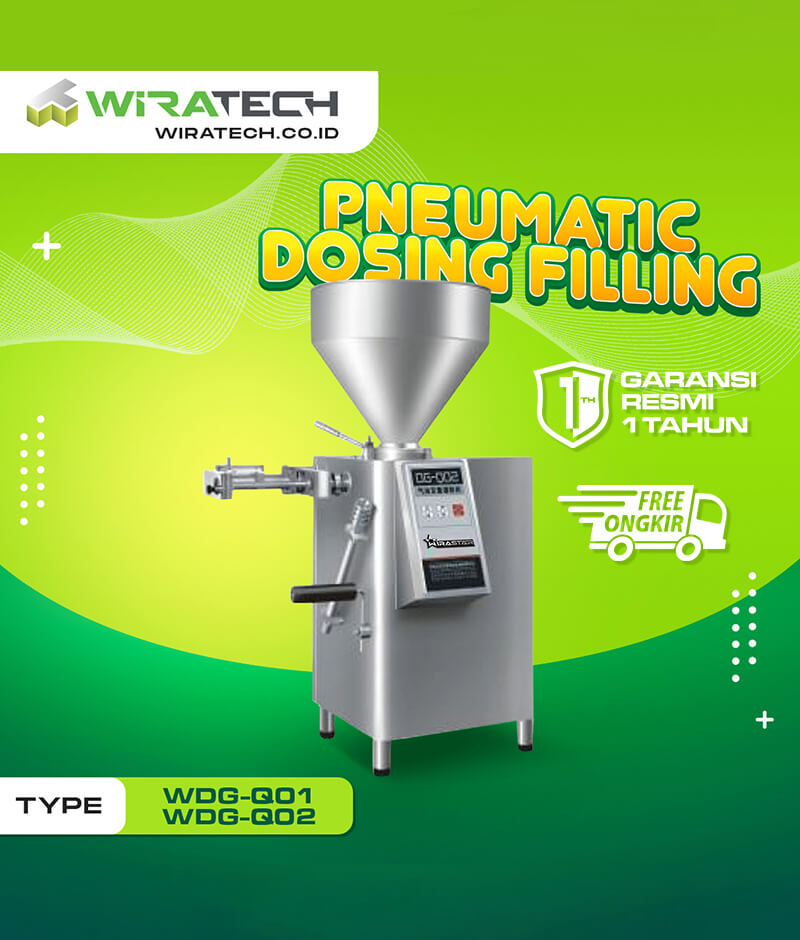

Pneumatic Dosing Filling Machine
The machine developed independently by our company is suitable for various sausage and ham. With the characteristics of small volume and low investment, it is applicable for medium and small-scale meat processing enterprise.
| Model | Dosing scope(g) | Suitable products | Working speed(time/min) | Pressure(mpa) | Weight(kg) | Dimension(mm) |
|---|---|---|---|---|---|---|
| WDG-Q01 | 20–500 50-1000 |
Minced meat and small block | 30-50 | 0.5-0.6 | 150 | 660×550×1520 |
| WDG-Q02 | 10–150 20–500 50–1000 |
Minced meat, block and preserved egg sausage | 30-50 | 0.5-0.6 | 165 | 700×800×1600 |
The machine is designed with adoption of CAD,which offers a compact and resonable design;The dosing error is within ±3g. The parts contacting with meat and the outside structure are made of stainless steel. The machine can be conneted with various clipping machine to actualize automatic production
