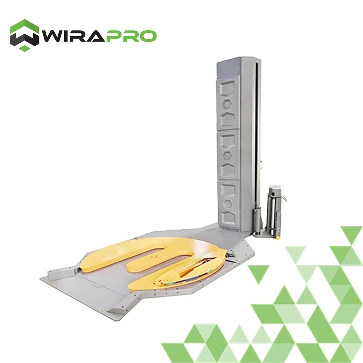

Full Auto Pallet Wrapper X500
Product Application
1.Pallet wrap machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet.
2.Film provides extra support during transportation and storage to protect them from dust, moisture or damage.
3.The pallet wrap machine has been widely used in industries such as glassware, tools, electric & electronic, paper,
pottery, food & beverage, et.
Main Features
1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic.
4. Auto reset of turn table.
5. Pre-stretch ratio: 300%.
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8.Pallet wraping machine soft start and soft stop.
9.Suitable for light pallet.
10.Remote control sytem ,fully automatic .
11.E type turntable ,easy for pallet jack load the pallet on machine .
QnA
1.What‘s mast height of machine?
X500 pallet wrapping machine mast height is 2650mm ,and the max packing height is 2400mm ,if you pallet over 2400mm,you need choose mast height 3400mm,the max packing height 3200mm
2.How to choose control system?
X500 pallet wrapping machine all use Siemens control
system.Top brand spare parts ensure a longer machine lifespan.
3.What’s turntable size ?
The standard turntable size is 1650mm .1800 mm
4.What’s temperature can be use ?
standard machine need > 0 degree
if <0 degree ,need tell us ,we need use a special motor for machine
5.What’s the lowest height of pallet jack need lift .?
need lift over 150mm
6.What’s max weight can be use?
our standard pallet stretch wrapper max load weight 800KG ,above 800KG ,please choose X100 model or X1
7.ramp and weighing scale weather can provide
yes,ramp and weighing scale can put add on X500
8.weather need air compressor for machine ?
No need
