L Seal Cutting Machine BSL-5045L

DOWNLOAD KATALOG TAB



thumbnal video mesin

Product Description

L Seal Cutting Machine

1. Menggunakan “nano-fiber cutter holder” dan “anti-sticking thermo-stable nichrome cutter”.
2. Rol yang didesain khusus , menggunakan pin untuk menghasilkan lubang kecil difilm untuk melepaskan udara.
3. Konsumsi daya rendah, hanya 2.5kwh.
4. Pemotong plastik tahan lama.
5. Dapat dipindah-pindahkan atau ditempatkan di tempat yang sama.
6. Dapat dioperasikan terus menerus untuk jangka waktu lama tanpa overheating.

Features:
1. There is protection mechanism for sealing knife against overheating and cutting.
2. Adopt nano-fiber cutter holder and antisticking thermostable nichrome cutter for sealing & cutting to ensure good sealing without cracking or coking.
3. After sealing action, packing product goes in the shrink tunnel automatically by the conveyor belt.
4. The height of conveyor belt can be adjusted with handwheel.
5. Sealing & cutting time is controlled by time relay accurately.
6. Double electromagnets are used to produce more pressure for sealing, which will make sealing much firmer.
7. Sliding film support can keep all kinds of shrink films, up to 550mm in width.
8. Upper sealing & cutting frame is controlled by return cylinder.
9. BSL-5045LA adopt pneumatic device.

Application:
1. BSL series semiautomatic L-seal cutting machine is suitable for shrink packing electronic products, hardware, software, foodstuff, printing, pharmacy, floor, ceramics etc in small amount.
2. Applied to all kinds of packing materials, such as PVC, POF, PP.

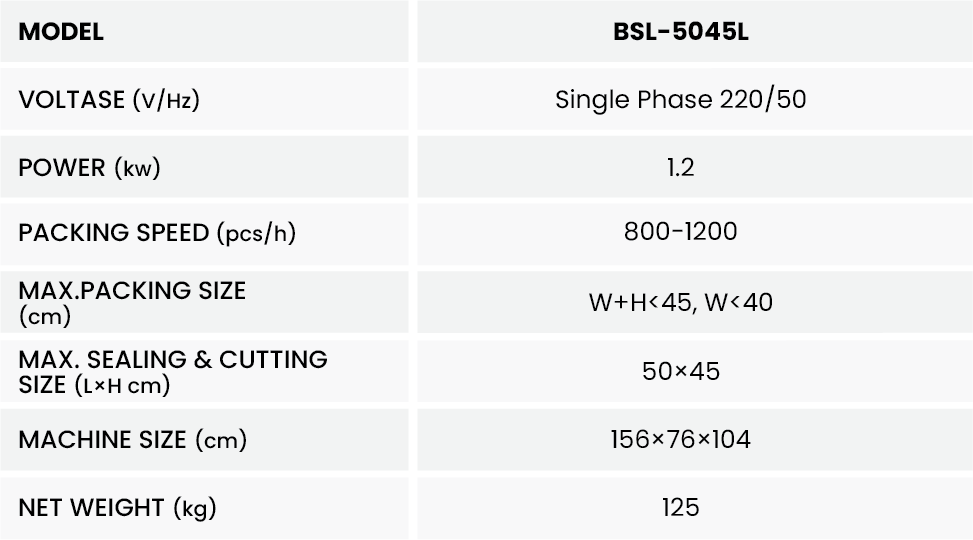

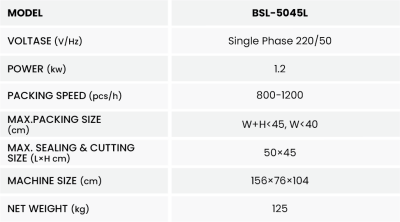

Parameters:

BSL-5045L BSL-5045LA
Voltage (V/Hz) Single Phase 220/50Single Phase 220/50
Compressed Air(kg/cm3) 6-8
Power (kw)    1.2  1.2
Packing Speed (pcs/hour)  800-1200800-1200
Max. Packing Size (L×W×H)(mm)450×400×300450×400×300

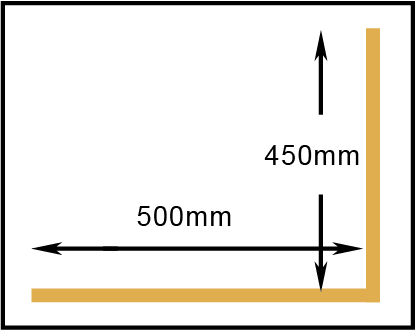

Max. Sealing & Cutting Size (L×H)(mm)500×450500×450
External Dimensions
(L×W×H)(mm)
1560×757×10401560×757×1040
Net Weight (kg)  125135
