Bottom Flap Carton Sealer DZF New

Bottom Flap Carton Sealer DZF



Product_Catalog_Icon







Product Description

Bottom Flap Carton Sealer DZF

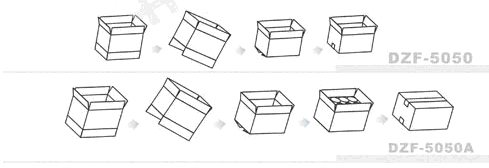

Workflow:

20091229160421954











Parameters:

DZF-5050          DZF-5050A
Voltage (V/Hz) AC 220/50
Power (W) 180
Gas Pressure (Mpa)0.5~0.6
Taping Speed (m/min) 22
Min. Carton Size (W×H×L) (mm) 200×160×110
Max. Carton Size (W×H×L) (mm) 600×500×500
Adhesive Tape UsedBOPP, PVC, Kraft Paper Tape
Width of Adhesive Tape (mm) 48、60、76(optional)
External Dimensions (L×W×H) (mm) 2000×860×1700
Net Weight (kg) 280290

1. Model DZF series semiautomatic bottom flap carton sealer can fold bottom flaps and seal bottom automatically after the carton being opened manually, which can be equipped into production line.

2. After the carton being opened manually, DZF-A semiautomatic bottom flap carton sealer can fold bottom flaps automatically, then the carton will be filled manually, at last the machine will seal both bottom and up flaps automatically. The machine can be equipped into production line.
